Mxprogrammer software

MXProgrammer is a standard Windows software, graphical programming tool of PLC, using the mouse keyboard, support various series PLC of MIKOM companies.

Follow the IEC61131-3standard, can choose three kinds of standard language when programming: ladder diagram (LAD), instruction list (IL), sequential function chart (SFC). Three languages can transform each other.

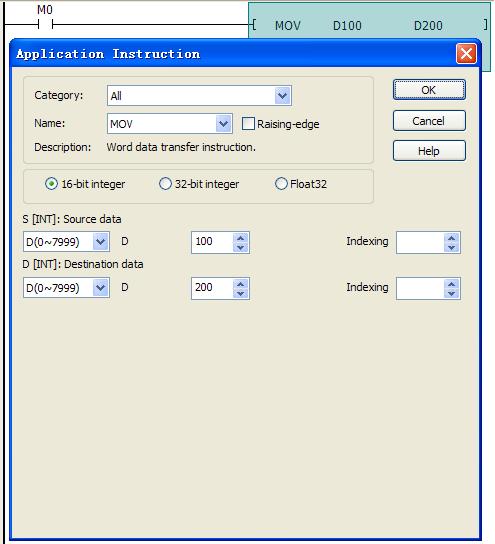

By instruction help system, users can easily understand the parameters significance when the input parameters, the functions of instruction, as well as the sample program. Save learning time, repeated read manual.

Order logout function, can be convenient for engineering commissioning, help you retain engineering corrections, after the cancellation of instruction color display with comments.

For some common functions, can in writing after the completion of the program (including the main program, subprogram, interrupt service routine), through import and export function used multiple times in different engineering, to avoid the same program writing.

In the "system configuration 鈫抪roject settings 鈫抩ther settings" set the data block is effective,.Through the data block to D component assignment, can save program space.

Main program

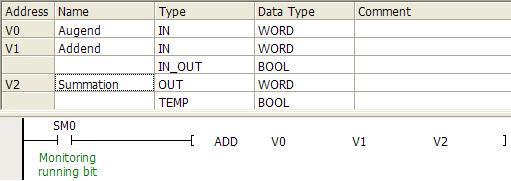

Subroutine

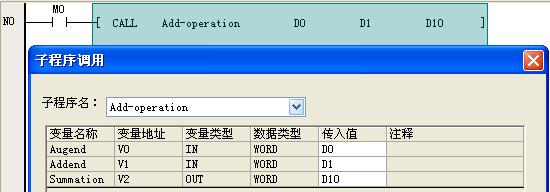

Using the subroutine arguments, in the main program can call a subroutine for many times, a lot of resources saving components.

Through global variables can clearly see elements of usage.

Can add multiple monitoring table, by monitoring the table, can be very convenient to write or forced operation of components, through the right click menu of "writing all components", continuous multiple write new values will be selected.

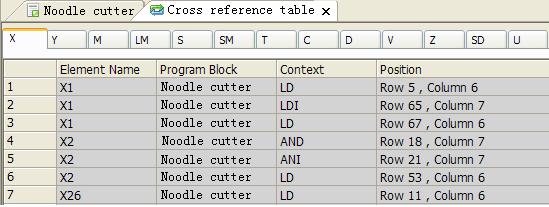

Through cross reference table, we can clearly see the usage of each element and its location, the location can be found by double-clicking in the engineering.

Through element reference table, we can clearly see the components of active passive reference and reference.

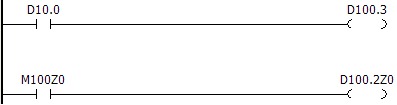

By bit addressing can to save a lot of program step, More convenient, more direct alignment device operation.

When extend the special function module,can be directly through the system configuration configuration, save a lot of the FROM/TO instructions.

For many instruction of parameters complex, the user is not very convenient to generate these instructions, so MXProgrammer software provides the function of instruction guide, help users convenient use these instructions.

Instruction guide has "PTO instruction guide", "PID instruction guide", "TPID instruction guide",pictures above for TPID instruction guide.

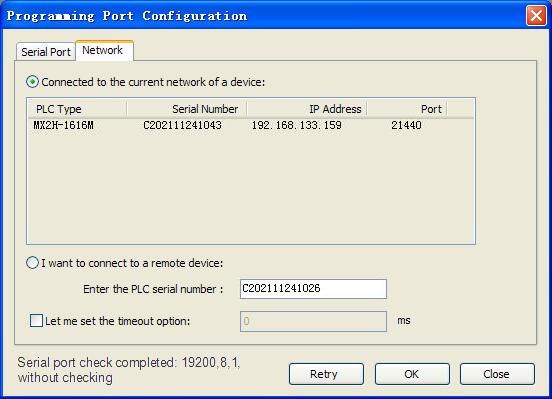

Configure the Ethernet card PLC can dynamically obtain an IP address, as long as the input of PLC products unique serial number, you can remote monitor PLC.

MXProgrammer has the perfect password protection function,multi-level password-protected,all the main program and subroutine encrypted separately and binding PLC serial number. Make the project can only be run on a specified sequence number of the PLC, effectively protect the customer's intellectual property rights.
