MX1H Main Module
MX1H Main Module
Introduction
The MX1H PLC, a mini-size programmable controller released by MIKOM, is characterized by small structure, powerful function and extremely high performance-to-price ratio.

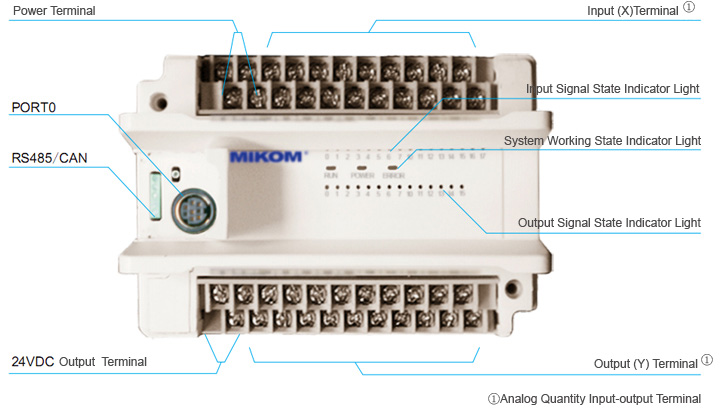

Product Components
Characteristics
High stability and high reliability
路Wide working voltage: Rated working voltage: AC100-240V, allowed working voltage: AC85-264V
路Strict 鈥渢hree protections鈥 treatment of panels, adapt to severe site conditions, working temperature: -5 to 55鈩, can bear shock and impact
路Keep user鈥檚 programs for ever
路Excellent anti-interference property
路Isolated 24V DC power output, can directly power sensors, HMI, external intermediate relays, etc.
Big capacity and high speed
路Program capacity: 12k step, command speed: 0.084渭S
High-speed counting and output
路Provide multiple high-speed input/output ports, built-in pulse output and multi-axis control
Powerful communication function
路Provide free port, MODBUS, MXLink (MIKOM special communication protocol), convenient system integration Can be integrated: CAN interface, 485 interface
Reliable program security
路Multi-level password protection, all main programs and subprograms can be encrypted independently; the program can bind the PLC with a designated serial number, which effectively protects the intellectual property of users.
Integrated analog quantity function
路Integrate multi-channel 12-bit analog quantity input and output, simplify the design of the small-size application system.
Real-time clock
路The real-time clock (RTC) is embedded in the MX1H PLC main module and provides the perpetual calendar function.

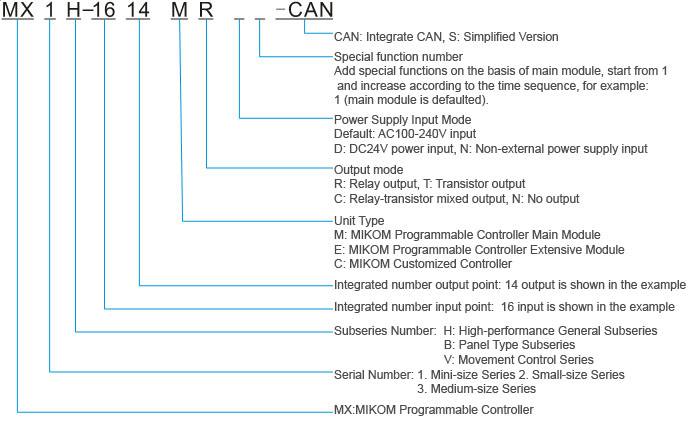

Naming regulation
Model Selection Table
Model | I/O Point | RS485 Interface | CAN Interface | Output Mode | Derivation Function | Size (mm) Length*Width*Height | Product Order Number |
MX1H-0806MR-S | 8-point Input | 鈥 | 鈥 | Relay | 鈥 | 126脳90脳72 | M04010047 |
MX1H-0806MT-S | 8-point Input | 鈥 | 鈥 | Transistor | 鈥 | 126脳90脳72 | M04010048 |
MX1H-1208MR-S | 12-point Input | 鈥 | 鈥 | Relay | 鈥 | 126脳90脳72 | M04010049 |
MX1H-1208MT-S | 12-point Input | 鈥 | 鈥 | Transistor | 鈥 | 126脳90脳72 | M04010050 |
MX1H-1614MR-S | 16-point Input | 鈥 | 鈥 | Relay | 鈥 | 126脳90脳72 | M04010058 |
MX1H-1614MT-S | 16-point Input | 鈥 | 鈥 | Transistor | 鈥 | 126脳90脳72 | M04010059 |
MX1H-0806MR | 8-point Input | Support | 鈥 | Relay | 鈥 | 126脳90脳72 | M04010027 |
MX1H-0806MT | 8-point Input | Support | 鈥 | Transistor | 鈥 | 126脳90脳72 | M04010028 |
MX1H-0806MR1 | 8-point Input | Support | 鈥 | Relay | 4-channel Analog Quantity Input, 2-channle Analog Quantity Output | 126脳90脳72 | M04010031 |
MX1H-0806MT1 | 8-point Input | Support | 鈥 | Transistor | 126脳90脳72 | M04010032 | |
MX1H-0808MR-4LC | 8-point Input | Support | 鈥 | Relay | 4-channel Thermocouple Temperature Measurement Control | 126脳90脳72 | M04010068 |
MX1H-0808MT-4LC | 8-point Input | Support | 鈥 | Transistor | 126脳90脳72 | M04010069 | |
MX1H-1208MR | 12-point Input | Support | 鈥 | Relay | 鈥 | 126脳90脳72 | M04010060 |
MX1H-1208MT | 12-point Input | Support | 鈥 | Transistor | 鈥 | 126脳90脳72 | M04010061 |
MX1H-1208MR1 | 12-point Input | Support | 鈥 | Relay | 2-channle Analog Quantity Input, 1-channel Analog Quantity Input | 126脳90脳72 | M04010064 |
MX1H-1208MT1 | 12-point Input | Support | 鈥 | Transistor | 126脳90脳72 | M04010065 | |
MX1H-1614MR | 16-point Input | Support | 鈥 | Relay | 鈥 | 126脳90脳72 | M04010043 |
MX1H-1614MT | 16-point Input | Support | 鈥 | Transistor | 鈥 | 126脳90脳72 | M04010044 |
MX1H-0806MR- CAN | 8-point Input | Support | Support | Relay | 鈥 | 126脳90脳72 | M04010029 |
MX1H-0806MT-CAN | 8-point Input | Support | Support | Transistor | 鈥 | 126脳90脳72 | M04010030 |
MX1H-0806MR1-CAN | 8-point Input | Support | Support | Relay | 4-channel Analog Quantity Input, 2-channle Analog Quantity Output | 126脳90脳72 | M04010033 |
MX1H-0806MT1-CAN | 8-point Input | Support | Support | Transistor | 126脳90脳72 | M04010034 | |
MX1H-1208MR-CAN | 12-point Input | Support | Support | Relay | 鈥 | 126脳90脳72 | M04010062 |
MX1H-1208MT-CAN | 12-point Input | Support | Support | Transistor | 鈥 | 126脳90脳72 | M04010063 |
MX1H-1208MR1-CAN | 12-point Input | Support | Support | Relay | 2-channle Analog Quantity Input, 1-channel Analog Quantity Input | 126脳90脳72 | M04010066 |
MX1H-1208MT1-CAN | 12-point Input | Support | Support | Transistor | 126脳90脳72 | M04010067 | |
MX1H-1614MR-CAN | 16-point Input | Support | Support | Relay | 鈥 | 126脳90脳72 | M04010045 |
MX1H-1614MT-CAN | 16-point Input | Support | Support | Transistor | 鈥 | 126脳90脳72 | M04010046 |
